RockBLOCK+ Iridium
RockBlock+ | RockBlock+ Brochure. |
https://www.rock7.com/products-rockblock-plus | RockBlock+ Webpage. |
The RockBLOCK device is IP68 rated and hosts an Iridium 9602 unit, an antenna and a voltage regulator. The 9602 unit is interfaced with RS-232 using AT commands. Depending on the conditions, the unit can send or receive a message approximately every 40 seconds. The cost is 0.1 to 0.05 GBP per 50-byte message, depending on the bundle that is bought. In addition, there is a 10 GBP line rental per month. The system has a limited bandwidth and is therefore only suitable for simple control monitoring or tracking applications. The maximum package sizes are 340 bytes for sending and 270 bytes for receiving. Although the latency is typically a few seconds, it may be as much as a minute or more.

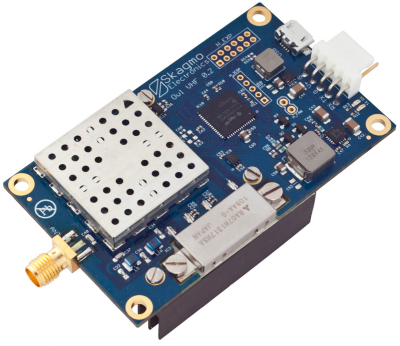

Owl VHF
OWL VHF datasheet | Owl VHF datasheet. |
http://skagmoelectronics.com/ | OWL VHF Webpage. |
The Owl VHF is a small, yet high performance radio transceiver packed with features. It's very flexible internal architecture allows a wide variety of modulation types and encoding. Rather than the typical SDR approach where samples are processed by an external device, the Owl does all its processing internally. A large command set regarding modulation, encoding and user protocol is configured through a serial port.
;#;
;#;
MikroTik 3G/4G Modem
MikroTik Modem Quick Guide | MikroTik Modem Quick Guide. |
https://wiki.mikrotik.com/wiki/Manual:TOC | MikroTik Modem Software Manual. |
https://mikrotik.com/product/ltap_mini_lte_kit#fndtn-specifications | MikroTik Modem Webpage. |
The LtAP mini LTE kit is a small weatherproof wireless access point with a built in cellular modem that supports 2G, 3G and 4G (LTE) connectivity on International LTE bands 1,2,3,7,8,20,38 and 40.
Access to the LTE network can be achieved by connecting to the LtAP mini’s built-in 802.11b/g/n wireless from a phone or any other wireless device. The LtAP mini LTE also has one 10/100 Ethernet LAN port for wired devices. The RS232 serial port gives console access for debugging.
LtAP mini has a special enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles. The unit has several powering options: 9-30 V PoE-in by Ethernet port, DC jack and microUSB.
;#;
;#;
